Regulators
Providing you the best range of Panasonic YT-35CV4 CO2/MAG Welding Torch with effective & timely delivery.

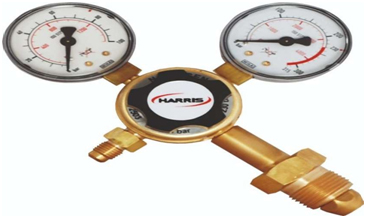

Harris601 HVAC Nitrogen Regulator,For Industrial
| Gas | Nitrogen |
| Brand | Harris |
| Regulator Type | HighPressureRegulator |
| Usage/Application | Industrial |
| StageType | SingleStage |
| AutomationGrade | Manual |
| AutomationGrade | Industrial |
| StageType | 55 Bar |
| MaximumInletPressure | 230Bar |
| ModelNumber | 601HVAC |
| StageType | 55 Bar |
| BodyandBonnetMaterial | Forged Brass |
| ValveSeat | PTFE(Teflflon) |
| Availability | 55 Bar |
| BodyandBonnetMaterial | InStock |

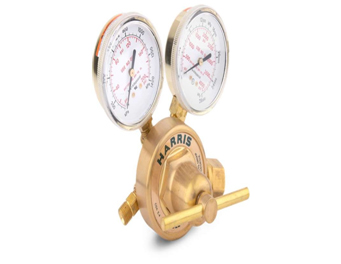

6.2-HARRIS REGULATOR ADVANTAGE
• PROVEN SAFETY
Meet or exceed all industry standards. All models are CGA E-4 ignition test certified and most are UL® Listed
• DURABLE MATERIALS
Highest quality, industrial grade brass, stainless steel, nickel, chrome and aluminum are used in construction.
QUALITY MANUFACTURING
100% Tested – 100% of the time
• ENCAPSULATED SEAT
Regulators fail due to dirt and debris on the seat – EVERY Harris regulator is equipped with a 10 micron filter
7 YEAR REGULATOR WARRANTY
Harris industrial regulators carry a 7 year regulator warranty

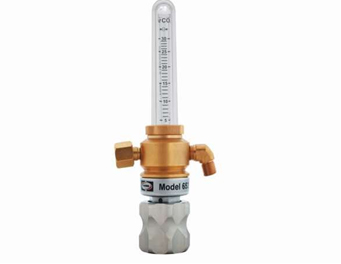

Model653
Pipeline flowmeter designed to deliver high accuracy gas flow and to reduce the consumption of shielding gas
Features
- Forged brass body for maximum strength Pipeline gas supplied Inlet filter to protect against contamination Precise gas flow control Strong flowmeter resistant to mechanical damages Polycarbonate outer tube cover with good 360° visibility Side entry One-piece encapsulated seat design with internal filter and PTFE (Teflon®*) seat Lockable version available
- MAX INLET PRESSURE (bar): 10 Flow: 0-30 l/pm Supply FlowGAUGE (lpm): 0-34
- Inlet Connection: G3/8RH Outlet Connection: G1/4RH Typical Applications
- All types of welding
Designed to deliver high accuracy gas flow

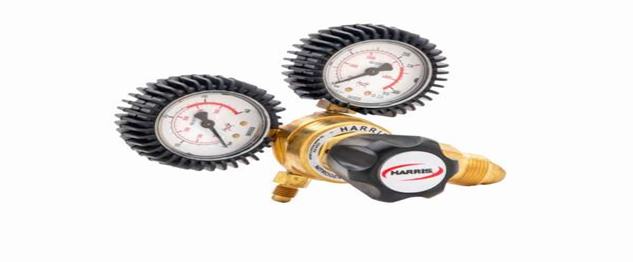

6.4 - Model 601 Single Stage Regulator
Model 601 single-stage regulator is designed to be compact and economical, but with features typically available in more expensive regulators. It is used where weight, cost and size are factors. The Model 601 nitrogen and other inert gas HVAC purging model features a larger ABS plastic adjusting knob and rubber gauge guards to protect the gauges in abusive conditions. The HVAC models also have a maximum delivery pressure of 400 or 800 ps
Features
- Brass body and bonnet
- 50mm ABS plastic dual scale gauges
- One-piece encapsulated seat design with an internal filter and PTFE Teflon® seat
- Plastic adjusting knob
- Neoprene diaphragm Typical Applications
- Industrial welding, cutting, heating
- HVAC purging
- Pressure testing
